| Max. Power (kVA): | 165 kVA |
| Current (A): | 416A (208V)/394A (220V)/361A (240V) |
| Frequency: | 50/60 Hz (±5 Hz adjustable) |
| Voltage Range: | 420-850V |
| Dimensions (W×D×H): | 1,200×800×2,050 mm |
| Weight: | 1,250-1,310 kg |
| प्रमुखता देना: | 150kW hybrid solar inverter,three-phase inverter for industrial microgrids,solar inverter with 850V battery support |

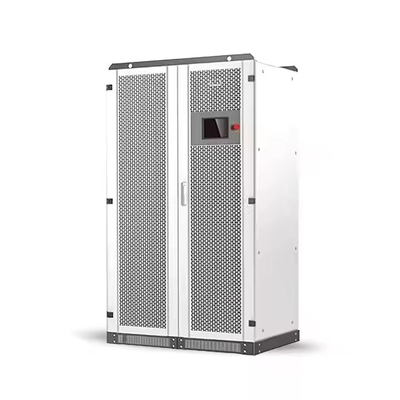

This 150kW three-phase hybrid inverter delivers uninterrupted power for mission-critical industrial operations. Designed for harsh environments, it combines high-efficiency solar conversion, flexible battery integration, and intelligent grid management in one rugged package.
50% More Power than 100kW models for heavy industrial loads
Extra MPPT Trackers (up to 4) for complex solar arrays
Enhanced Cooling System for continuous 24/7 operation
150kW continuous output (165kVA peak)
Handles simultaneous operation of heavy machinery (e.g., crushers, compressors)
<3% THDi clean power output
Protects sensitive CNC equipment and medical devices
2-4 independent MPPT trackers
*Eliminates 18-22% power loss from panel mismatch vs. single-tracker systems*
1,000V max PV input
Reduces wiring costs by 30% through longer string designs
420-850V battery voltage range
Directly connects to modern high-voltage lithium batteries
240kW max charging power
*2-hour recharge capability for shift-change operations*
-30°C cold-start capability
Proven in Arctic mining operations
IP20 protected components
Withstands dusty quarry/mine environments
(Refer to Section 2 for complete specifications table)
Mine dewatering pumps (24/7 operation)
Steel mill induction furnaces (high surge loads)
Peak shaving for factories
Solar farm battery integration
Military base power
Off-grid oil rigs
Q: How does this compare to 100kW models for data centers?
A: Provides 50% more capacity for N+1 redundancy, with extra MPPT trackers for diverse roof arrays.
Q: What battery communications are supported?
A: CAN 2.0B + RS485 for major lithium/LFP brands (Tesla, BYD, CATL compatible)
Q: Can it power entire factories during blackouts?
A: Yes, when paired with ≥500kWh storage - 8-10 hour runtime for typical assembly plants.
⚠ Structural Considerations
1,300kg floor loading
800mm clearance for airflow
⚠ Electrical Safety
500A AC disconnect required
Surge protection mandatory for lightning zones
| Category | Specifications |
|---|---|
| AC Output (On-Grid) | |
| Max. Power (kVA) | 165 kVA |
| Rated Power (kW) | 150 kW |
| Voltage Options | 208V/220V/240V (Wye) |
| Current (A) | 416A (208V)/394A (220V)/361A (240V) |
| Frequency | 50/60 Hz (±5 Hz adjustable) |
| THDi | <3% |
| Power Factor | 0.8 leading/lagging (adjustable) |
| AC Output (Off-Grid) | |
| THDu | <1% (linear), <5% (nonlinear) |
| Overload Capacity | 110% continuous |
| PV Input | |
| Max. PV Voltage | 1,000V |
| Max. PV Power | 120/180/240 kW |
| MPPT Trackers | 2/3/4 |
| MPPT Voltage Range | 250-850V |
| Battery | |
| Voltage Range | 420-850V |
| Max. Charging Power | 120/180/240 kW |
| Physical Data | |
| Dimensions (W×D×H) | 1,200×800×2,050 mm |
| Weight | 1,250-1,310 kg |
| Operating Temperature | -30°C to 55°C |
| Protection Rating | IP20 |
| Noise Level | <70 dB |
| Communication | RS485, CAN, TCP/IP |
